FreePCB

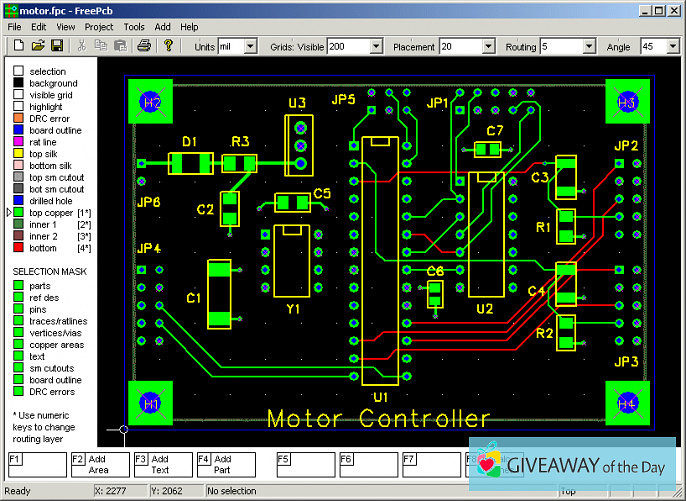

Work with layers and create PCB designs.

Create PCB designs, choose templates to manipulate footprint information, browse libraries, and perform basic alterations. Work with 1 to 16 copper layers with board size up to 60 inches by 60 inches, select English or metric units, import and export PADS-PCB netlists.

Pros

Comes with the autosave option
Works with 1 to 16 copper layers
Includes footprint libraries

Cons

Lacks netlist functionality

Developed by Allan
File name: freepcb_1359_combined_update.zip (4.7 MB)
Latest version: 1.3.5.9
License: Free
Updated: March 20, 2019
